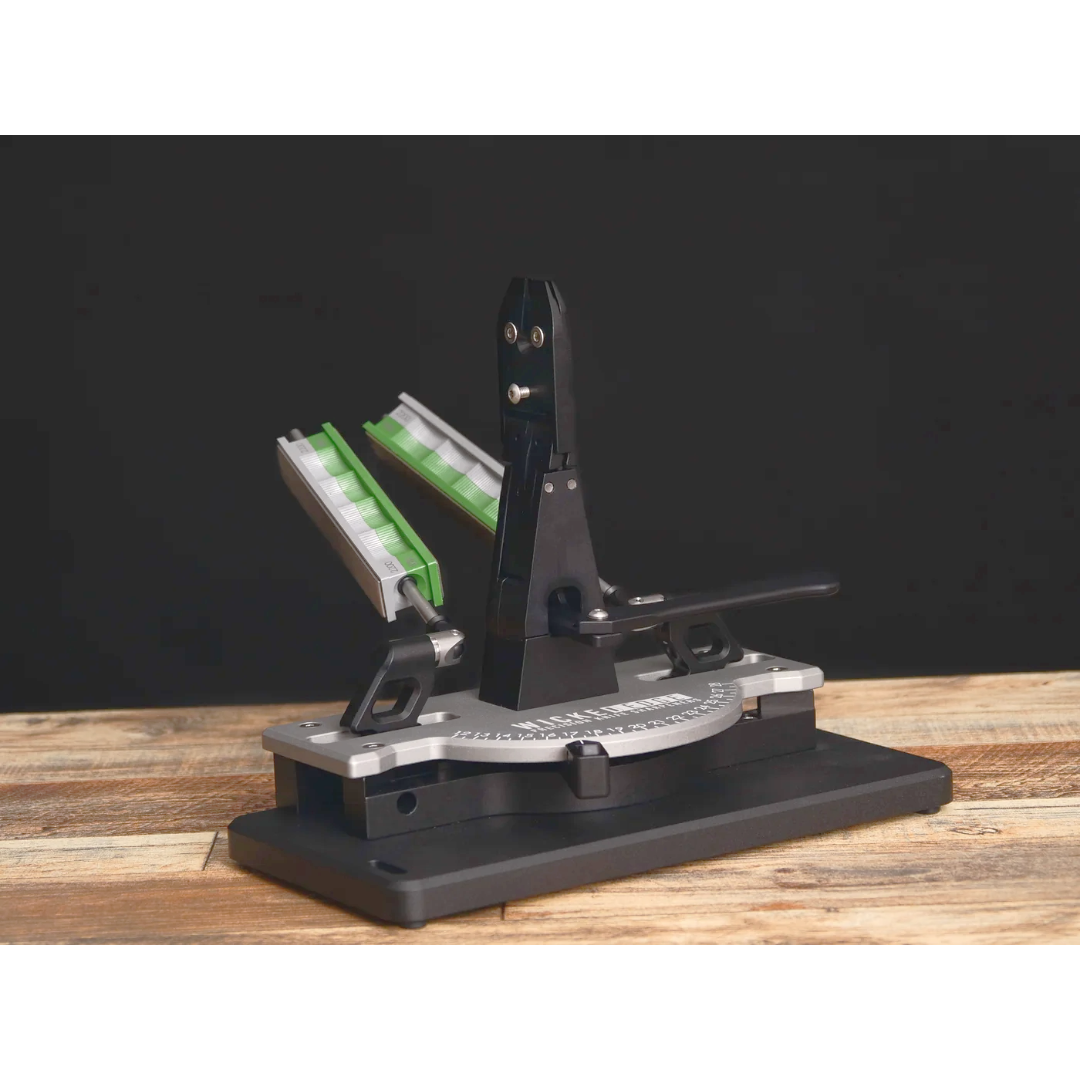

Wicked Edge Sharpener Low Angle Adapter Version 2

The Wicked Edge Low Angle & Small Knife Adapter V2 is a versatile attachment designed to help you achieve lower sharpening angles, making it easier to sharpen small blades and Japanese knives. This V2 model is compatible with all Wicked Edge sharpening systems and improves upon the original version, offering greater ease of use and precision. The adapter allows for more acute sharpening angles, ensuring optimal sharpness and edge retention for your knives.

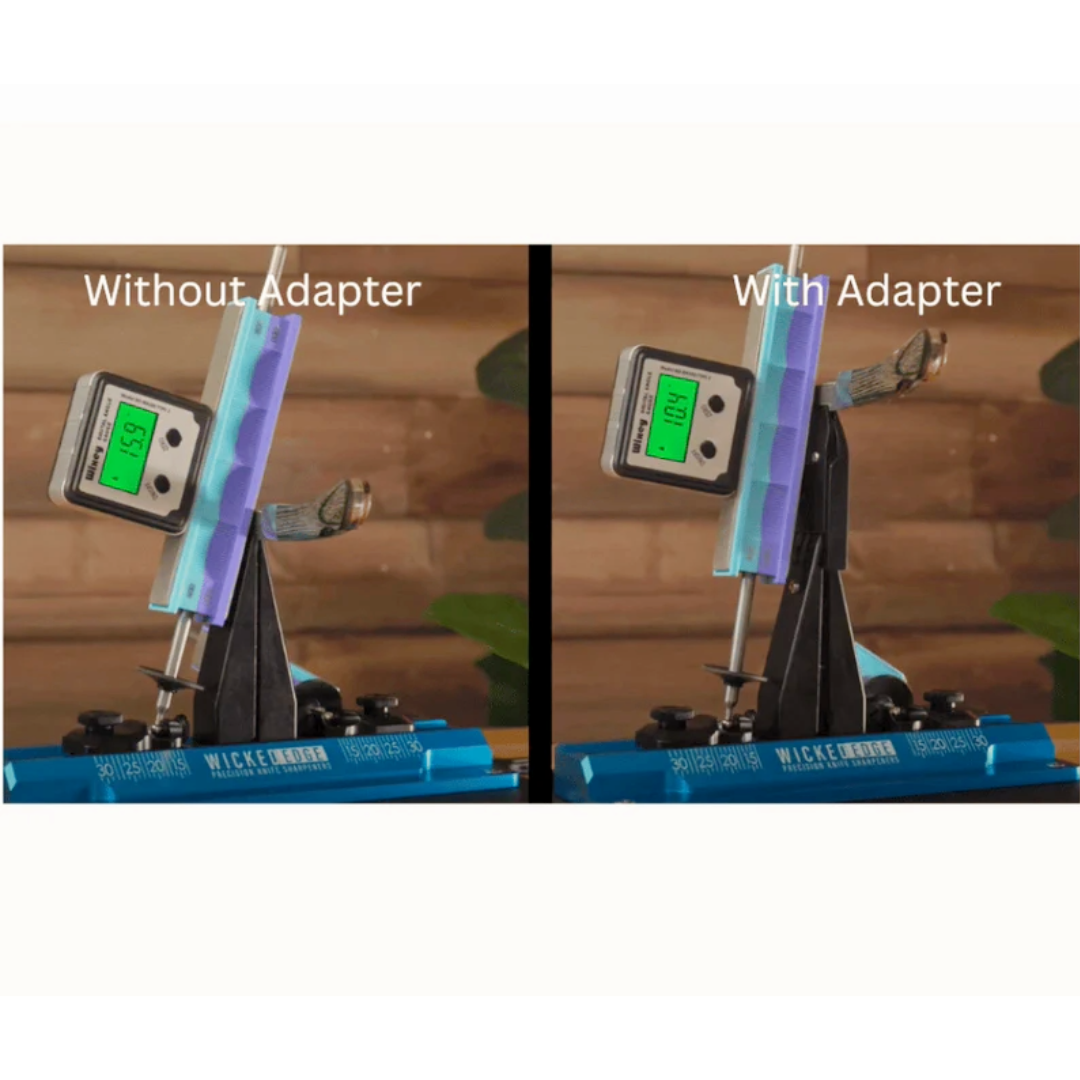

With the included 2.38 mm and 3.17 mm Allen wrenches, you can easily install and adjust the adapter on your Wicked Edge system. The adapter significantly alters the clamping height, which can affect the sharpener's angle markings. For the most accurate results, it is recommended to use a Digital Angle Gauge to calibrate the sharpening angles properly. Longer guide rods are also beneficial for adjusting the clamping height to accommodate the adapter.

Upgrade your Wicked Edge system with the Low Angle & Small Knife Adapter V2 and experience the benefits of achieving lower sharpening angles with enhanced precision and control.

• Compatible with all Wicked Edge sharpening systems

• Ideal for sharpening small blades and Japanese knives

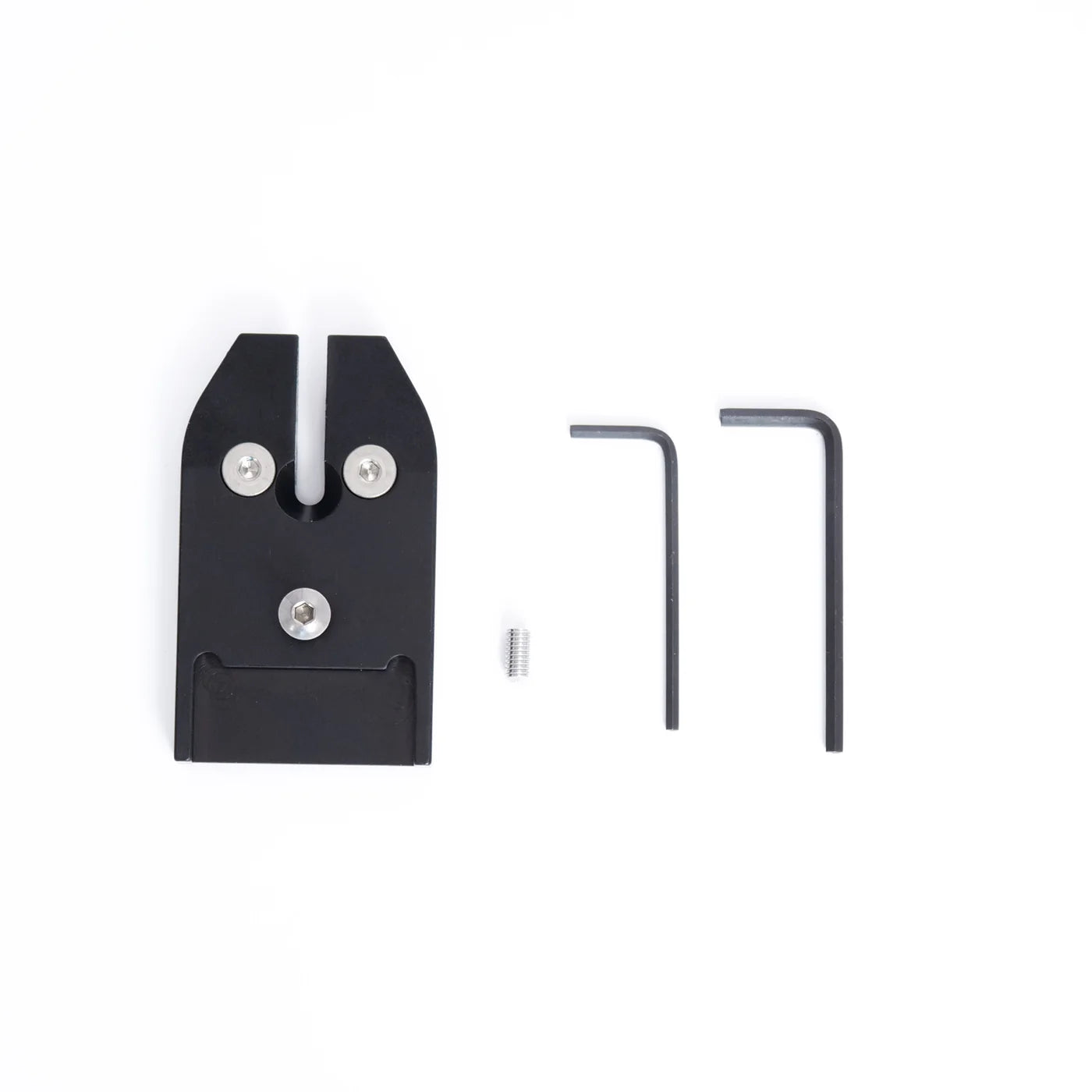

• Includes 2.38 mm and 3.17 mm Allen wrenches for installation

• Digital Angle Gauge recommended for precise angle calibration

• Longer guide rods recommended for higher clamping heights


Follow these steps to install and use the Wicked Edge Low Angle & Small Knife Adapter V2:

1. Secure the Low Angle Adapter V2 in the sharpener's vise using the provided Allen wrenches.

2. To clamp your knife into the adapter, use the 3.17 mm Allen wrench to loosen the screws enough to fit the knife between the jaws. Tighten the screws to secure the blade without overtightening.

3. Use standard methods, such as the Sharpie technique or manufacturer's recommendations, to determine the optimal sharpening angle.

4. Measure and set the angles using a Digital Angle Gauge for accuracy.

5. Sharpen your blade following the usual Wicked Edge procedures, ensuring consistency throughout the process.
