84 Engineering Shop Master 2" x 72" Assembled Belt Grinder Performance Plus Kit

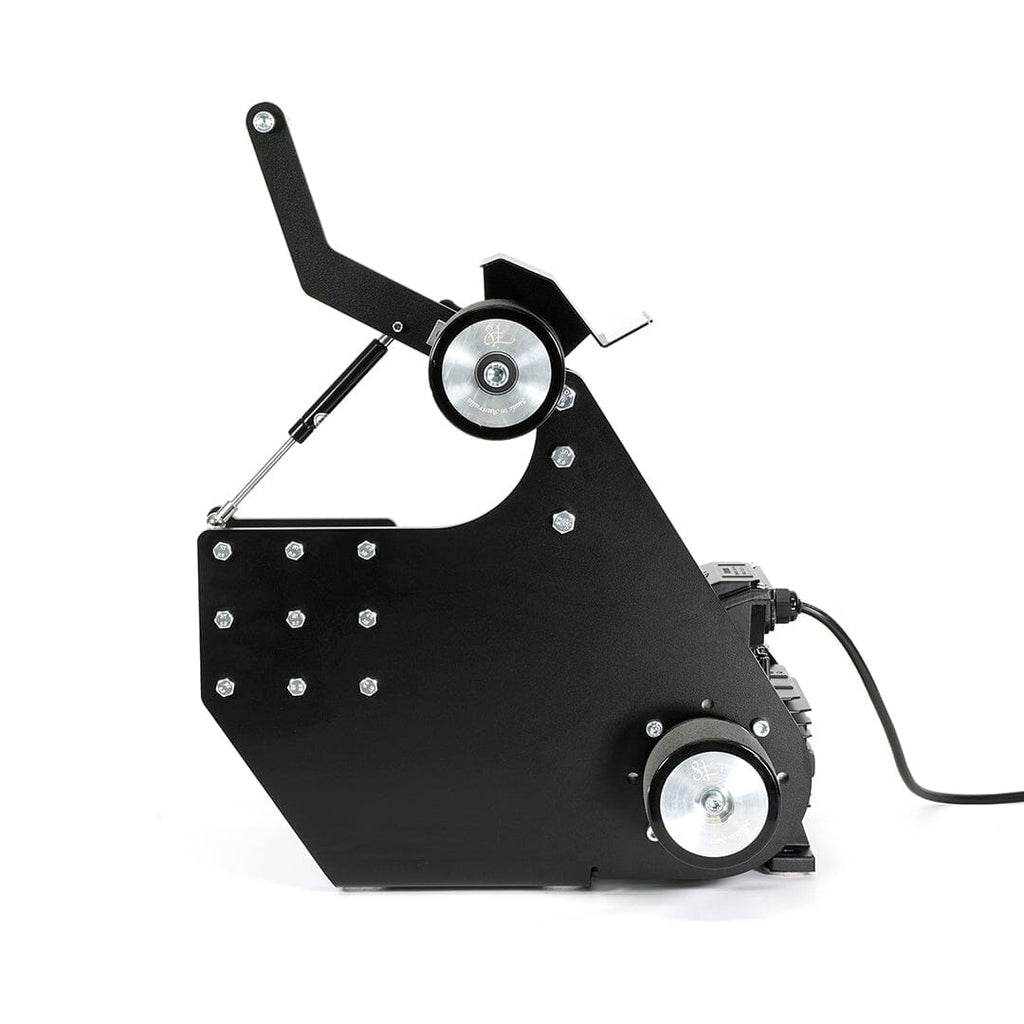

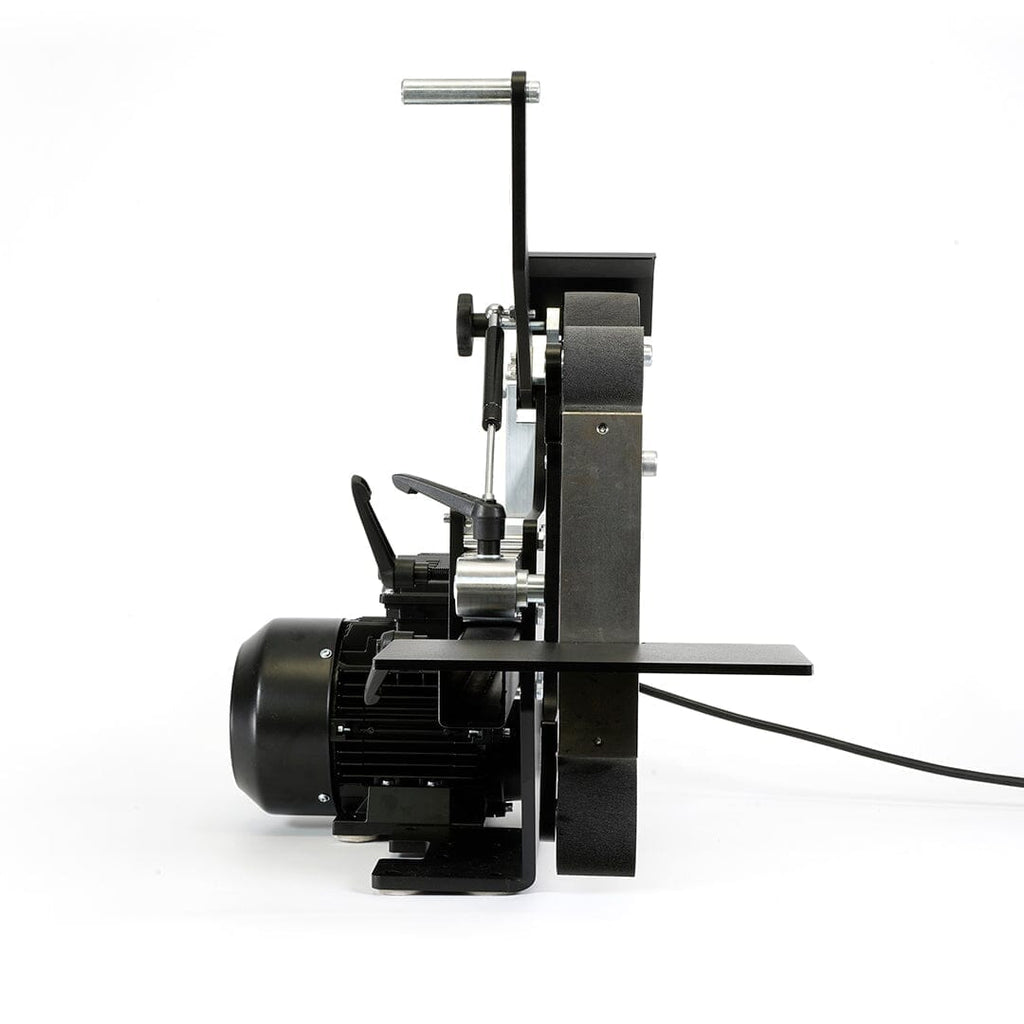

The Shop Master 72” Belt Grinder is a cost-effective premium machine designed for serious fabricators and knife makers. The sleek, single-piece folded body is laser cut from 10mm plate steel, making for an extremely rigid yet uncomplicated chassis.

All body components simply bolt together using basic hand tools, making servicing and assembly a breeze. The grinder is versatile and easy to use, equipped with a fixed steel work rest and a 6-in-1 rotating platen. The included Variable Frequency Drive (VFD) converts power to a 3-phase signal, driving the 1.5kw (2hp) motor.

This setup allows you to dial in the belt speed anywhere from 0 – 4800 fpm and provides maximum motor torque even at low RPM. All wheels on the Shop Master grinder are precision CNC machined from 6061 billet aluminium and coated in our newly formulated abrasion-resistant urethane rubber.

The flat-plane tracking mechanism offers increased tracking stability and ease of adjustment over many other options available on the market. The gas strut tensioning system ensures a consistent belt tension regardless of tooling setup. Assembly is simple thanks to two cartons that break down the grinder into a semi-assembled, powder-coated body, assembled platen and drive wheel, and a pre-wired motor and VFD.

• 72" belt length
• 8″ / 210mm rotating platen
• 2”, 3” & 5” rubberised contact wheels
• 2 tool arm slots
• Fixed work rest
• Protective spark guard
• Powder-coated tool rest included
• Purchase belts for the grinder separately

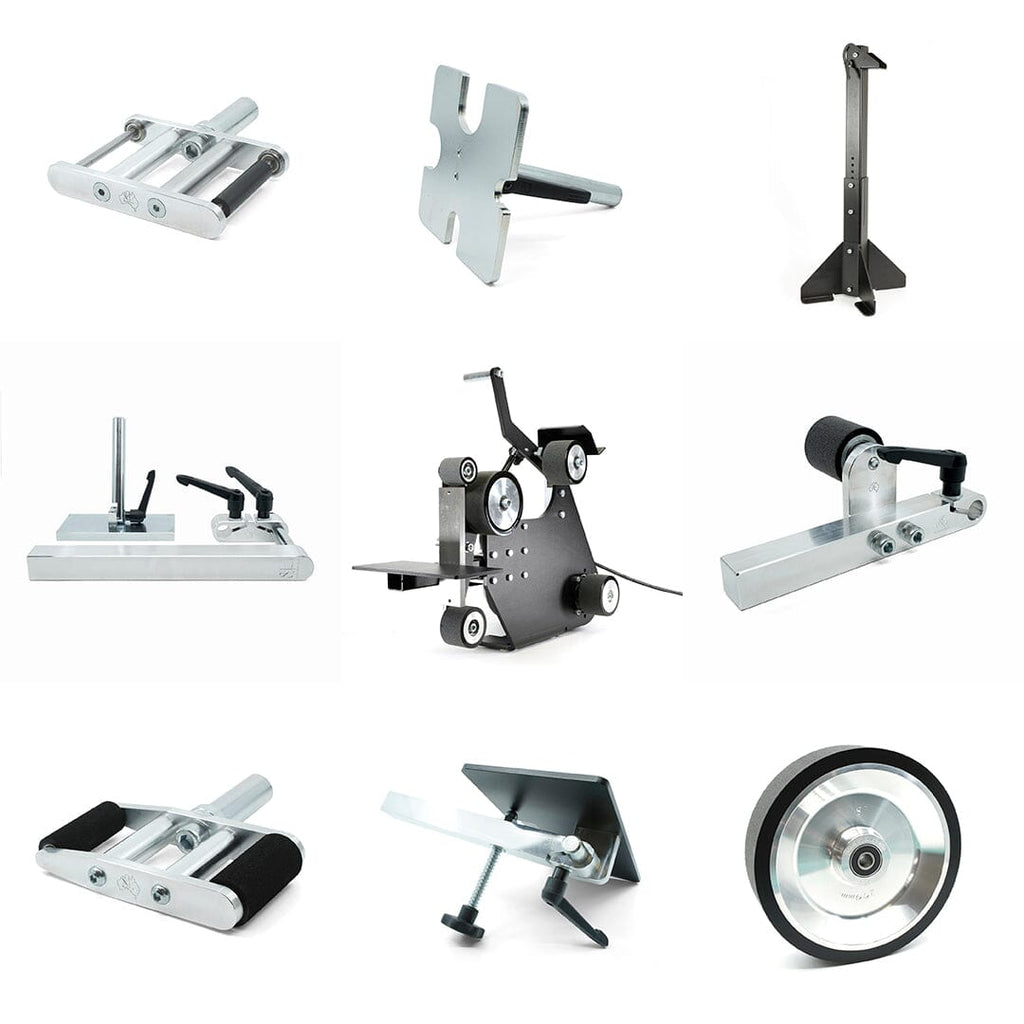

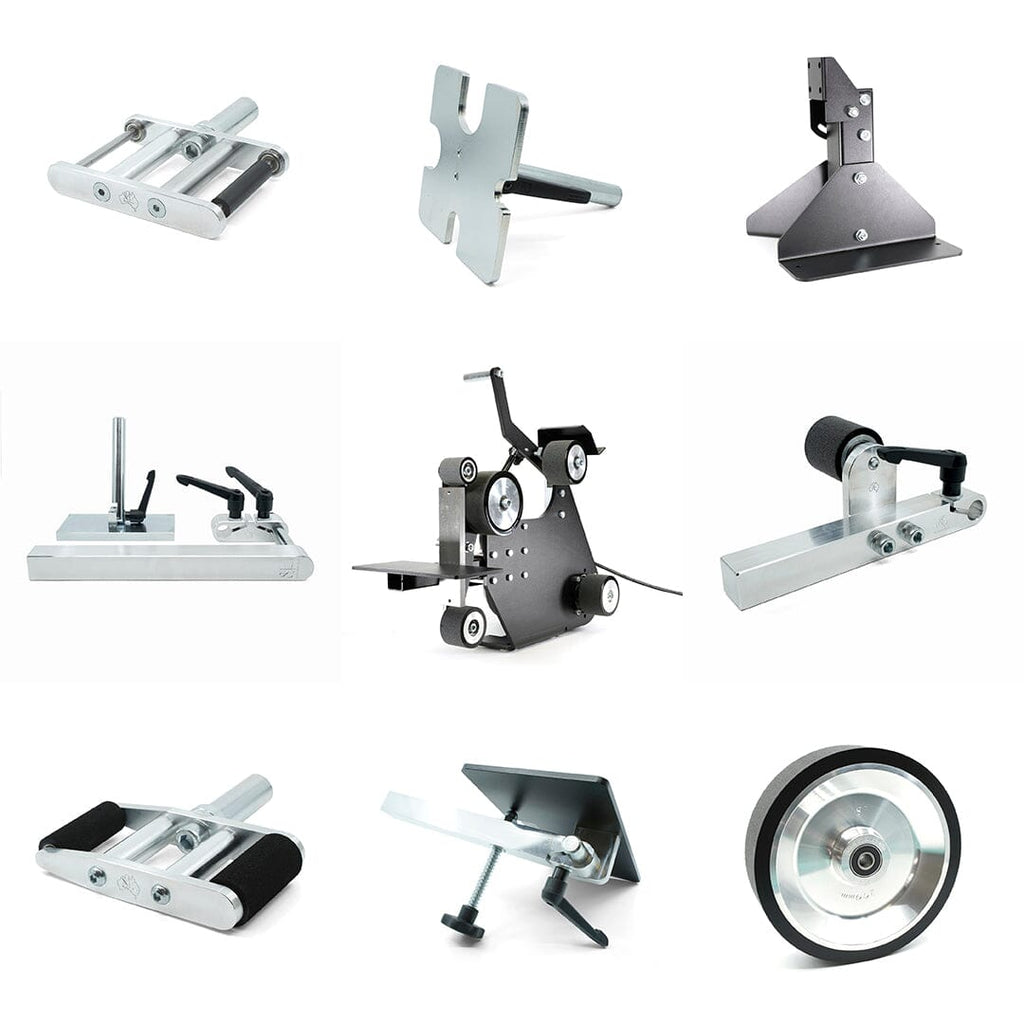

• 72″ powder coated grinder body
• Powder coated tool rest
• Rotating platen
• Pre-wired 2hp (1.5kw) motor and VFD

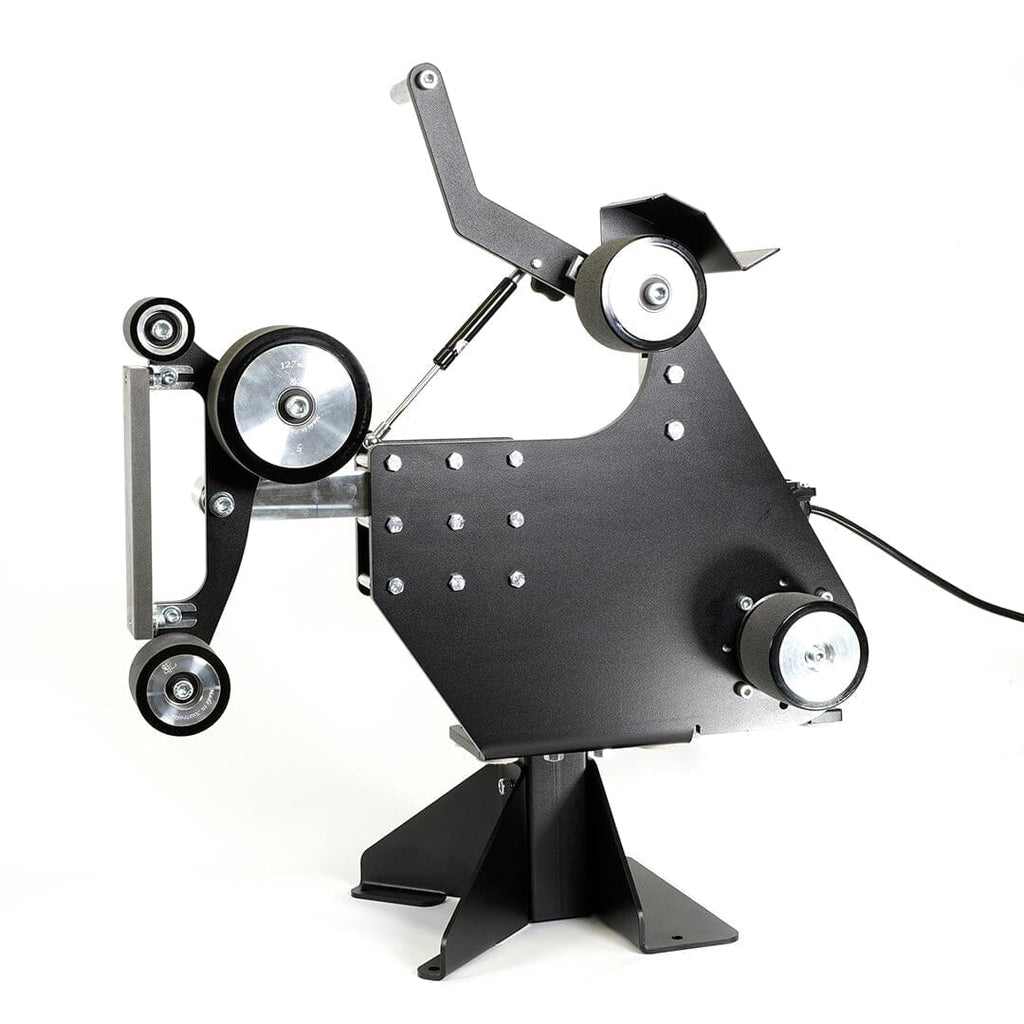

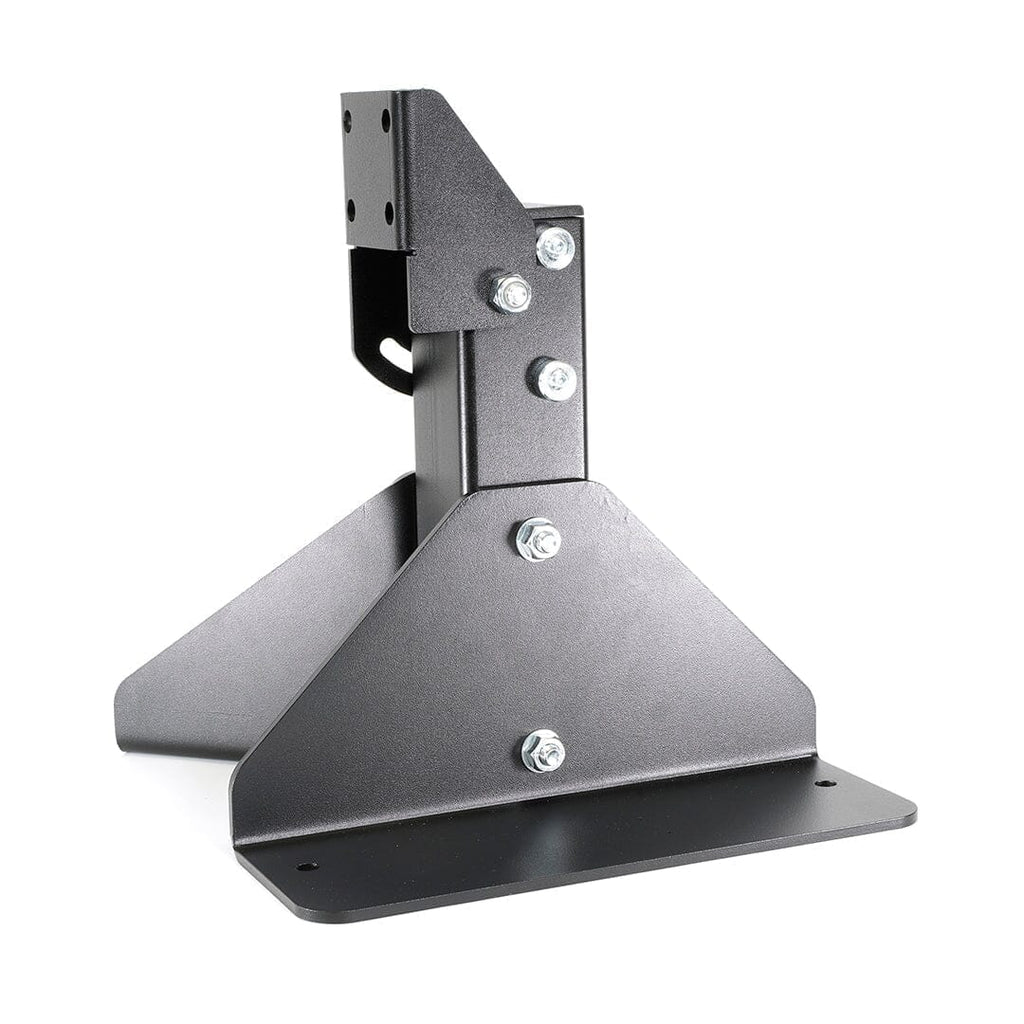

• Bench top stand or Pedestal stand (Choose your option)
• Small wheel pairs 6/13mm Wheels
• Small wheel pairs 19/25mm Wheels
• Angle adjustable rest
• 8" Contact wheel
• Universal tool rest
• Small wheel arm
• Small wheel rest
